| Brand Name: | XINYA |
| Model Number: | DSJ150/180 |
| MOQ: | 1 |
| τιμή: | $1,200-1,500 |
| Attribute | Value |
|---|---|
| Warranty | 1 YEAR |
| Customized Support | OEM |
| Application | POWER CONSTRUCTION |
| Line Pulling (KGS) | 900 |
| Cable Diameter | 30-200mm |
| Rubber Sheet Thickness | 25mm |
| Pulling Speed (m/min) | 8 |

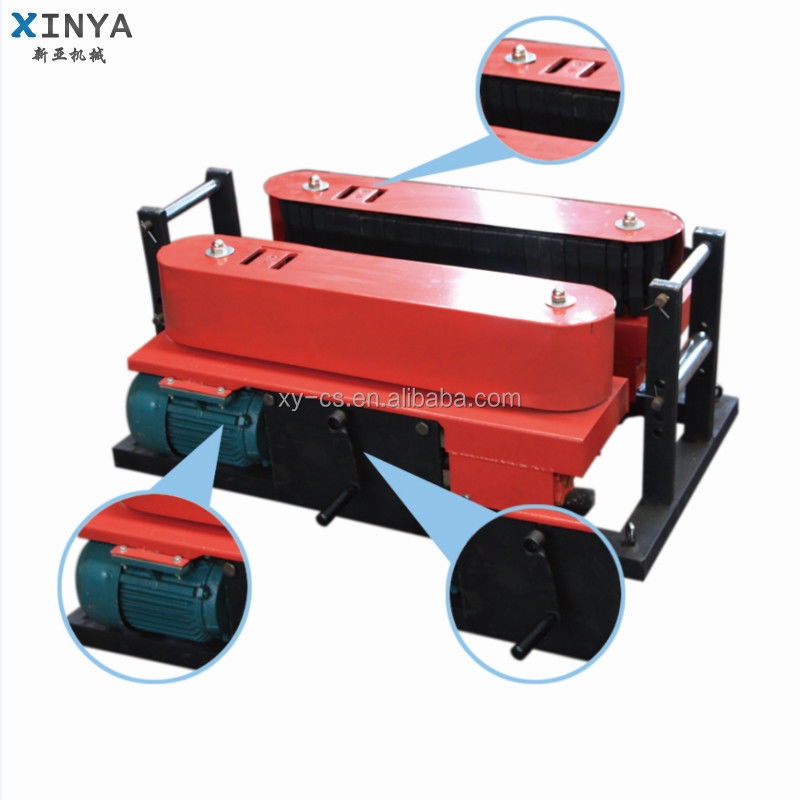

This professional-grade cable hauling machine is designed for underground electrical cable laying applications, featuring a robust 900kg pulling capacity. Ideal for power grid transformation and new cable installations, it significantly reduces labor intensity while improving engineering quality.
| Model Type | DSJ-150 | DSJ-180 |
|---|---|---|
| Line Pulling (KGS) | 700 | 900 |
| Pulling Speed (m/min) | 8 | 6 |
| Electric Motor | 1.1KW × 2 | 1.5KW × 2 |
| Oversize Dimension (mm) | 950×500×400 | 1020×590×400 |
| Weight (KGS) | 150 | 180-200 |
| Cable Diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transmission | I=45 | I=60 |
| Rubber Sheet Thickness | 25mm | 25mm |
For pricing information, please provide the following details:
Contact us by phone or email for more information about our cable laying equipment solutions.
